Google Sheets connector

1. Install the SDK

   Node.js

   npm install @scalekit-sdk/node

   Python

   pip install scalekit

   Full SDK reference: Node.js | Python

2. Set your credentials

   Add your Scalekit credentials to your .env file. Find values in app.scalekit.com > Developers > API Credentials.

   .env

   SCALEKIT_ENVIRONMENT_URL=<your-environment-url>
   SCALEKIT_CLIENT_ID=<your-client-id>
   SCALEKIT_CLIENT_SECRET=<your-client-secret>

3. Set up the connector

   Register your Google Sheets credentials with Scalekit so it handles the token lifecycle. You do this once per environment.

   Dashboard setup steps

   Register your Scalekit environment with the Google Sheets connector so Scalekit handles the authentication flow and token lifecycle for you. The connection name you create will be used to identify and invoke the connection programmatically. Then complete the configuration in your application as follows:

   1. Set up auth redirects

      • In Scalekit dashboard, go to AgentKit > Connections > Create Connection. Find Google Sheets and click Create. Click Use your own credentials and copy the redirect URI. It looks like https://<SCALEKIT_ENVIRONMENT_URL>/sso/v1/oauth/<CONNECTION_ID>/callback.



      • Navigate to Google Cloud Console → APIs & Services → Credentials. Select + Create Credentials, then OAuth client ID. Choose Web application from the Application type menu.

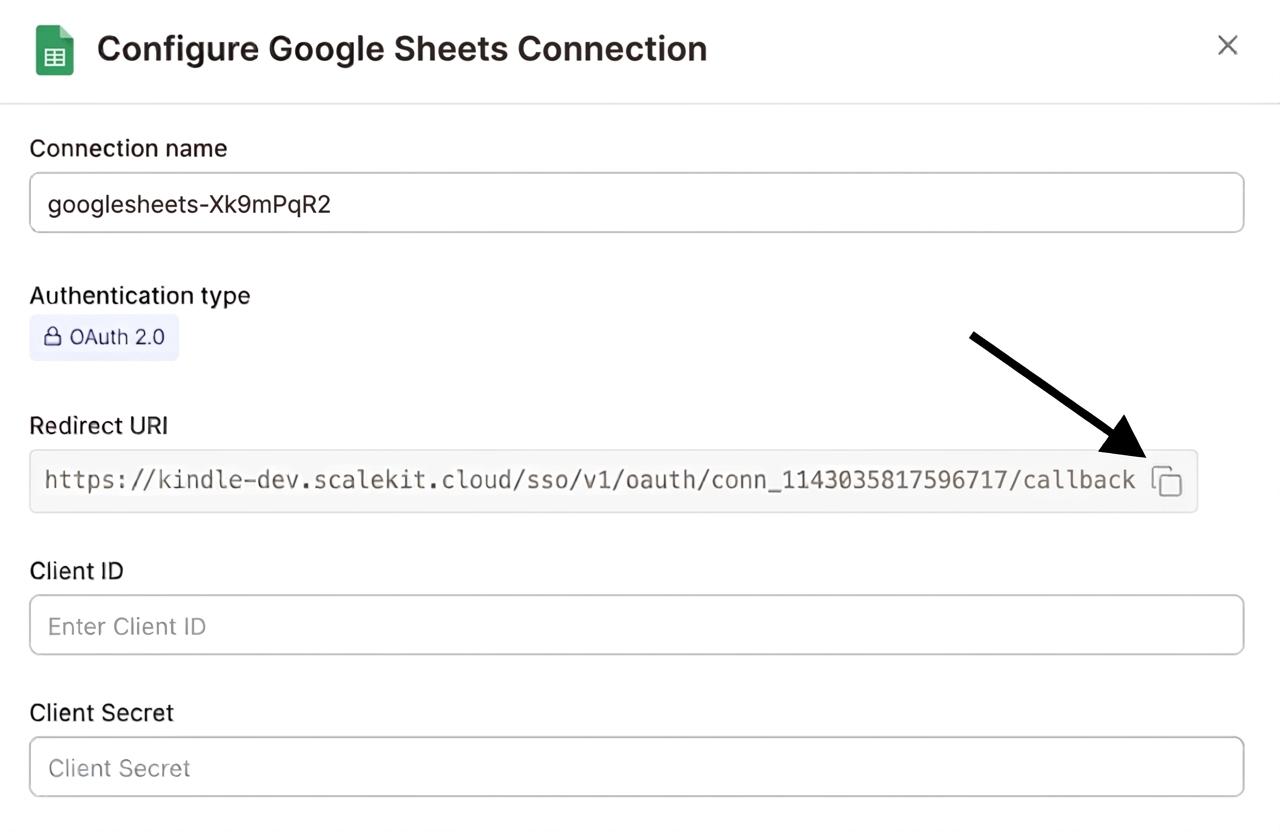

      • Under Authorized redirect URIs, click + Add URI, paste the redirect URI, and click Create.



   2. Enable the Google Sheets API

      • In Google Cloud Console, go to APIs & Services → Library. Search for “Google Sheets API” and click Enable.

   3. Get client credentials

      • Google provides your Client ID and Client Secret after you create the OAuth client ID in step 1.

   4. Add credentials in Scalekit

      • In Scalekit dashboard, go to AgentKit > Connections and open the connection you created.

      • Enter your credentials:

        • Client ID (from above)
        • Client Secret (from above)
        • Permissions (scopes — see Google API Scopes reference)



      • Click Save.

4. Authorize and make your first call

   Node.js

   quickstart.ts

   import { ScalekitClient } from '@scalekit-sdk/node'
   import 'dotenv/config'

   const scalekit = new ScalekitClient(
     process.env.SCALEKIT_ENV_URL,
     process.env.SCALEKIT_CLIENT_ID,
     process.env.SCALEKIT_CLIENT_SECRET,
   )
   const actions = scalekit.actions

   const connector = 'googlesheets'
   const identifier = 'user_123'

   // Generate an authorization link for the user
   const { link } = await actions.getAuthorizationLink({ connectionName: connector, identifier })
   console.log('Authorize Google Sheets:', link)
   process.stdout.write('Press Enter after authorizing...')
   await new Promise(r => process.stdin.once('data', r))

   // Make your first call
   const result = await actions.executeTool({
     connector,
     identifier,
     toolName: 'googlesheets_read_spreadsheet',
     toolInput: { spreadsheet_id: 'YOUR_SPREADSHEET_ID' },
   })
   console.log(result)

   Python

   quickstart.py

   import os
   from scalekit.client import ScalekitClient
   from dotenv import load_dotenv
   load_dotenv()

   scalekit_client = ScalekitClient(
       env_url=os.getenv("SCALEKIT_ENV_URL"),
       client_id=os.getenv("SCALEKIT_CLIENT_ID"),
       client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
   )
   actions = scalekit_client.actions

   connection_name = "googlesheets"
   identifier = "user_123"

   # Generate an authorization link for the user
   link_response = actions.get_authorization_link(
       connection_name=connection_name,
       identifier=identifier,
   )
   print("Authorize Google Sheets:", link_response.link)
   input("Press Enter after authorizing...")

   # Make your first call
   result = actions.execute_tool(
       tool_input={"spreadsheet_id":"YOUR_SPREADSHEET_ID"},
       tool_name="googlesheets_read_spreadsheet",
       connection_name=connection_name,
       identifier=identifier,
   )
   print(result)

What you can do

Connect this agent connector to let your agent:

• Values clear, append — Clear all values in a specified range of a Google Sheets spreadsheet
• Update values — Update cell values in a specific range of a Google Sheet
• Get values — Returns only the cell values from a specific range in a Google Sheet — no metadata, no formatting, just the data
• Read spreadsheet — Returns everything about a spreadsheet — including spreadsheet metadata, sheet properties, cell values, formatting, themes, and pixel sizes
• Create spreadsheet — Create a new Google Sheets spreadsheet with an optional title and initial sheet configuration

Common workflows

Proxy API call

Node.js

const result = await actions.request({
  connectionName: 'googlesheets',
  identifier: 'user_123',
  path: '/v4/spreadsheets',
  method: 'GET',
});
console.log(result);

Python

result = actions.request(
    connection_name='googlesheets',
    identifier='user_123',
    path="/v4/spreadsheets",
    method="GET"
)
print(result)

googlesheets_create_spreadsheet

Create a new Google Sheets spreadsheet with an optional title and initial sheet configuration. Returns the new spreadsheet ID and metadata.

Name	Type	Required	Description
locale	string	No	Locale of the spreadsheet
schema_version	string	No	Optional schema version to use for tool execution
sheets	array<object>	No	Initial sheets to include in the spreadsheet
time_zone	string	No	Time zone for the spreadsheet
title	string	No	Title of the new spreadsheet
tool_version	string	No	Optional tool version to use for execution

googlesheets_get_values

Returns only the cell values from a specific range in a Google Sheet — no metadata, no formatting, just the data. For full spreadsheet metadata and formatting, use googlesheets_read_spreadsheet instead.

Name	Type	Required	Description
major_dimension	string	No	Whether values are returned by rows or columns
range	string	Yes	Cell range to read in A1 notation
schema_version	string	No	Optional schema version to use for tool execution
spreadsheet_id	string	Yes	The ID of the Google Sheet
tool_version	string	No	Optional tool version to use for execution
value_render_option	string	No	How values should be rendered in the response

googlesheets_read_spreadsheet

Returns everything about a spreadsheet — including spreadsheet metadata, sheet properties, cell values, formatting, themes, and pixel sizes. If you only need cell values, use googlesheets_get_values instead.

Name	Type	Required	Description
include_grid_data	boolean	No	Include cell data in the response
ranges	string	No	Cell range to read in A1 notation
schema_version	string	No	Optional schema version to use for tool execution
spreadsheet_id	string	Yes	The ID of the Google Sheet to read
tool_version	string	No	Optional tool version to use for execution

googlesheets_update_values

Update cell values in a specific range of a Google Sheet. Supports writing single cells or multiple rows and columns at once.

Name	Type	Required	Description
include_values_in_response	boolean	No	Return the updated cell values in the response
range	string	Yes	Cell range to update in A1 notation
schema_version	string	No	Optional schema version to use for tool execution
spreadsheet_id	string	Yes	The ID of the Google Sheet to update
tool_version	string	No	Optional tool version to use for execution
value_input_option	string	No	How input values should be interpreted
values	array<array>	Yes	2D array of values to write to the range

Execute a tool

Node.js

const result = await actions.executeTool({
  connector: 'googlesheets',
  identifier: 'user_123',
  toolName: 'googlesheets_get_values',
  toolInput: {
    spreadsheet_id: '<SPREADSHEET_ID>',
    range: 'Sheet1!A1:D10',
  },
});
console.log(result);

Python

result = actions.execute_tool(
    connection_name='googlesheets',
    identifier='user_123',
    tool_name='googlesheets_get_values',
    tool_input={
        "spreadsheet_id": "<SPREADSHEET_ID>",
        "range": "Sheet1!A1:D10",
    },
)
print(result)

Google OAuth consent screen verification

Before you use your own Google OAuth credentials in production, understand what end users see on Google’s consent screen when they authorize a connected account.

Audience type	Consent screen behavior	When to use
Internal	Shows your App Name and logo from Branding settings	Only users in your Google Workspace or Cloud Identity organization can authorize the connector
External	Shows {env_name}.scalekit.dev until Google verifies your app	Any user with a Google account can authorize the connector

Why External is required for most AgentKit connectors:

• Internal restricts authorization to users in your Google Workspace or Cloud Identity organization. Users with @gmail.com or other Google accounts outside your organization cannot complete OAuth.
• External is required when end users outside your organization authorize tool access through connected accounts.
• Organization-managed OAuth clients follow the same rules as personal or developer OAuth clients. Switching to an org-owned client does not bypass Google verification.
• Until Google completes verification of your External app, users see scalekit.dev on the consent screen. After verification, your App Name and logo appear.

Separate from Scalekit domain verification

This is Google’s OAuth consent screen behavior—not Scalekit’s. Custom domain controls your Scalekit environment URL for MCP auth branding. It does not replace Google’s app verification for OAuth consent screens.

During development:

• Add Test users under APIs & Services → OAuth consent screen while publishing status is Testing.
• On unverified apps, users can click Advanced → Go to app (unsafe) to proceed during testing.
• Google Workspace admins may need to allowlist your OAuth client.

For Google’s verification requirements and timeline, refer to Google’s OAuth consent screen verification guide.

Tool list

Use the exact tool names from the Tool list below when you call execute_tool. If you’re not sure which name to use, list the tools available for the current user first.

googlesheets_append_values#Append rows of data to a Google Sheets spreadsheet. Data is added after the last row with existing content in the specified range.5 params▾

Append rows of data to a Google Sheets spreadsheet. Data is added after the last row with existing content in the specified range.

NameTypeRequiredDescription

rangestringrequiredThe A1 notation range to append data to (e.g. Sheet1!A1)

spreadsheet_idstringrequiredThe ID of the spreadsheet to append data to

valuesarrayrequired2D array of values to append. Each inner array is a row.

insert_data_optionstringoptionalHow the input data should be inserted. Options: INSERT_ROWS (inserts new rows), OVERWRITE (overwrites existing data). Default: OVERWRITE

value_input_optionstringoptionalHow input data should be interpreted. Options: RAW (literal values), USER_ENTERED (as if typed in UI, parses formulas/dates). Default: USER_ENTERED

googlesheets_clear_values#Clear all values in a specified range of a Google Sheets spreadsheet. Formatting is preserved; only the cell values are cleared.2 params▾

Clear all values in a specified range of a Google Sheets spreadsheet. Formatting is preserved; only the cell values are cleared.

NameTypeRequiredDescription

rangestringrequiredThe A1 notation range to clear (e.g. Sheet1!A1:D10)

spreadsheet_idstringrequiredThe ID of the spreadsheet to clear values in

googlesheets_create_spreadsheet#Create a new Google Sheets spreadsheet with an optional title and initial sheet configuration. Returns the new spreadsheet ID and metadata.6 params▾

Create a new Google Sheets spreadsheet with an optional title and initial sheet configuration. Returns the new spreadsheet ID and metadata.

NameTypeRequiredDescription

localestringoptionalLocale of the spreadsheet

schema_versionstringoptionalOptional schema version to use for tool execution

sheetsarrayoptionalInitial sheets to include in the spreadsheet

time_zonestringoptionalTime zone for the spreadsheet

titlestringoptionalTitle of the new spreadsheet

tool_versionstringoptionalOptional tool version to use for execution

googlesheets_get_values#Returns only the cell values from a specific range in a Google Sheet — no metadata, no formatting, just the data. For full spreadsheet metadata and formatting, use googlesheets_read_spreadsheet instead.6 params▾

Returns only the cell values from a specific range in a Google Sheet — no metadata, no formatting, just the data. For full spreadsheet metadata and formatting, use googlesheets_read_spreadsheet instead.

NameTypeRequiredDescription

rangestringrequiredCell range to read in A1 notation

spreadsheet_idstringrequiredThe ID of the Google Sheet

major_dimensionstringoptionalWhether values are returned by rows or columns

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

value_render_optionstringoptionalHow values should be rendered in the response

googlesheets_read_spreadsheet#Returns everything about a spreadsheet — including spreadsheet metadata, sheet properties, cell values, formatting, themes, and pixel sizes. If you only need cell values, use googlesheets_get_values instead.5 params▾

Returns everything about a spreadsheet — including spreadsheet metadata, sheet properties, cell values, formatting, themes, and pixel sizes. If you only need cell values, use googlesheets_get_values instead.

NameTypeRequiredDescription

spreadsheet_idstringrequiredThe ID of the Google Sheet to read

include_grid_databooleanoptionalInclude cell data in the response

rangesstringoptionalCell range to read in A1 notation

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

googlesheets_update_values#Update cell values in a specific range of a Google Sheet. Supports writing single cells or multiple rows and columns at once.7 params▾

Update cell values in a specific range of a Google Sheet. Supports writing single cells or multiple rows and columns at once.

NameTypeRequiredDescription

rangestringrequiredCell range to update in A1 notation

spreadsheet_idstringrequiredThe ID of the Google Sheet to update

valuesarrayrequired2D array of values to write to the range

include_values_in_responsebooleanoptionalReturn the updated cell values in the response

schema_versionstringoptionalOptional schema version to use for tool execution

tool_versionstringoptionalOptional tool version to use for execution

value_input_optionstringoptionalHow input values should be interpreted
